Purpose
Designed for the rolling process of various drum brake shoe face plates.
Product Features

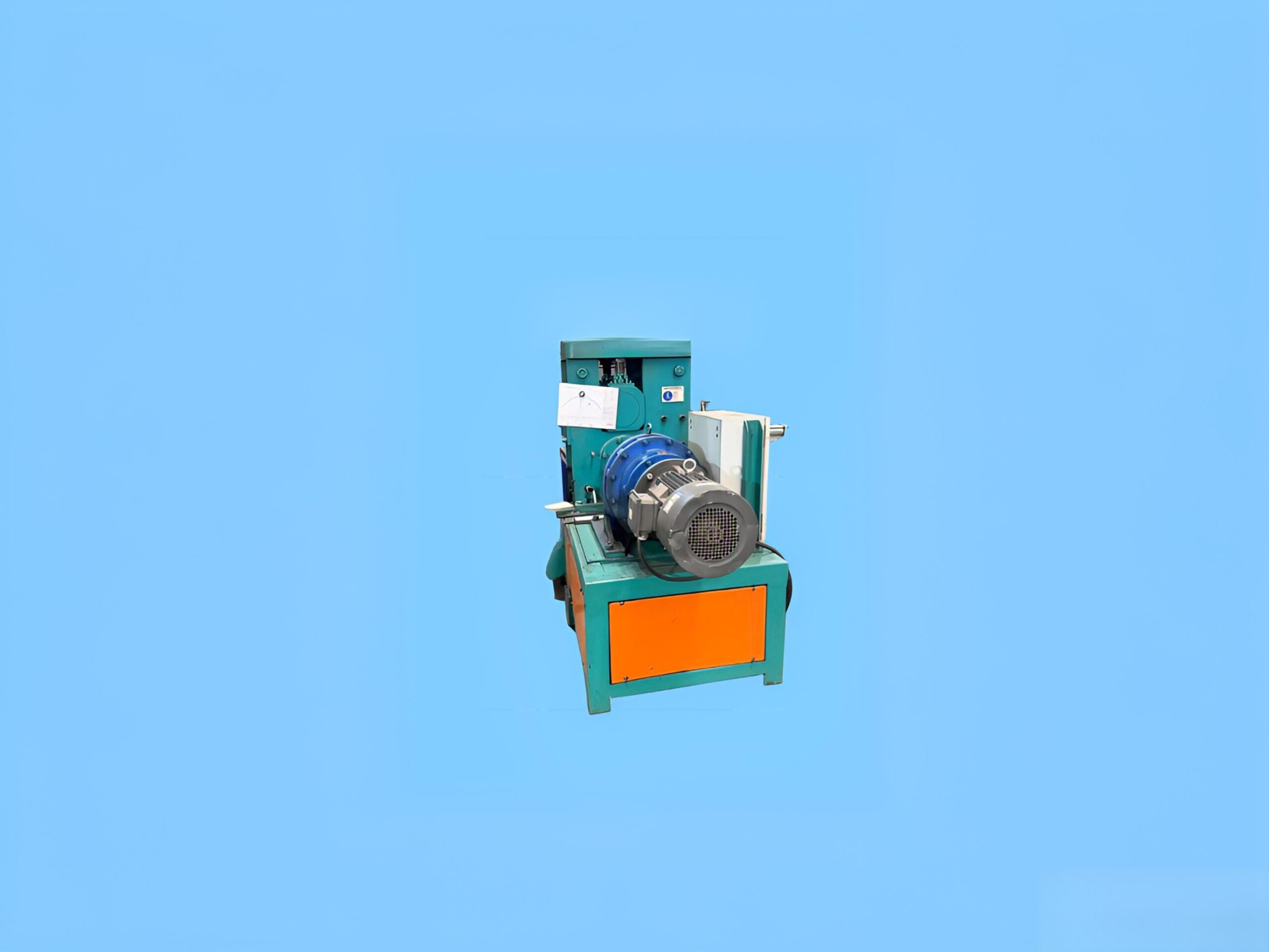

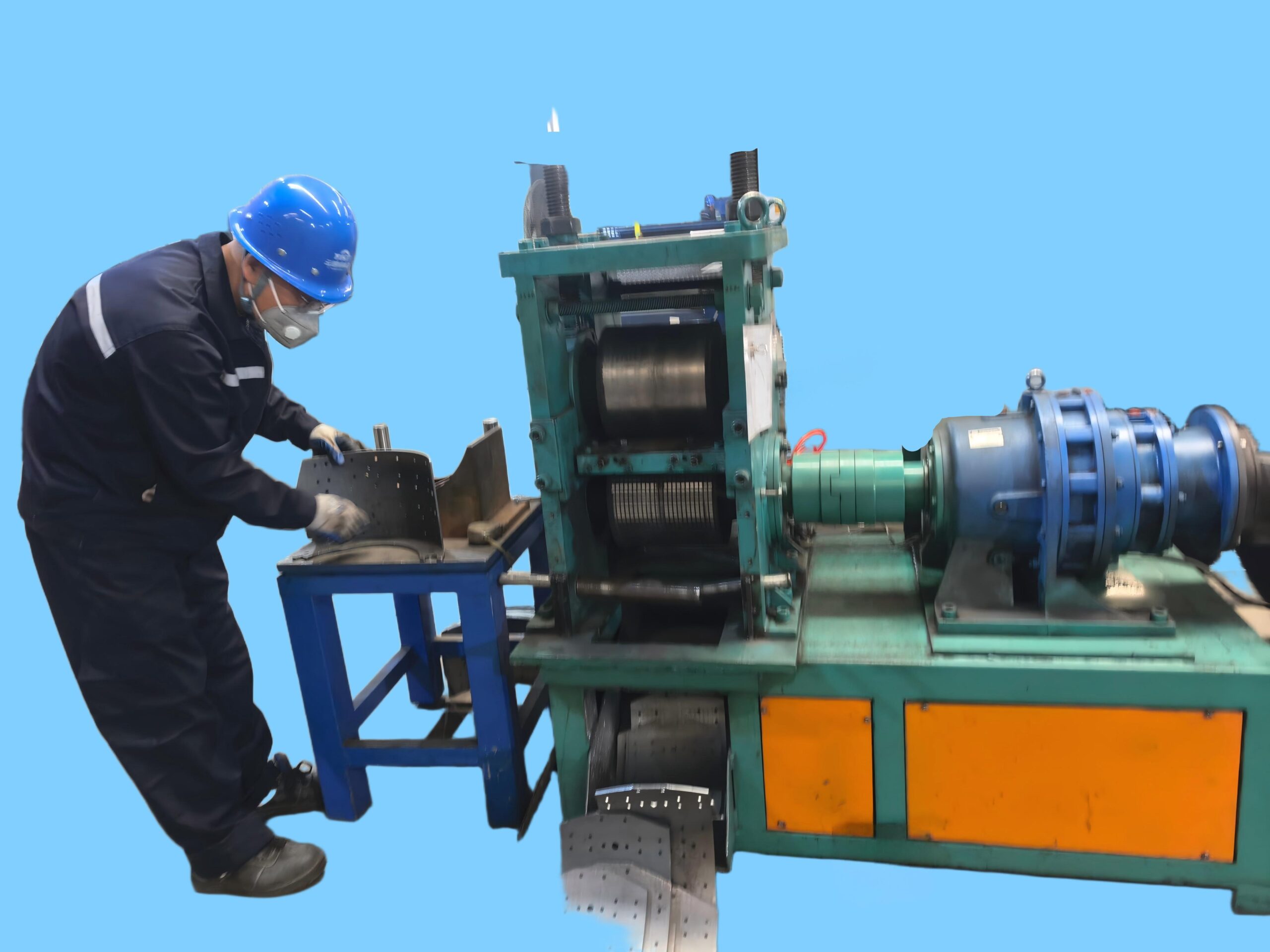

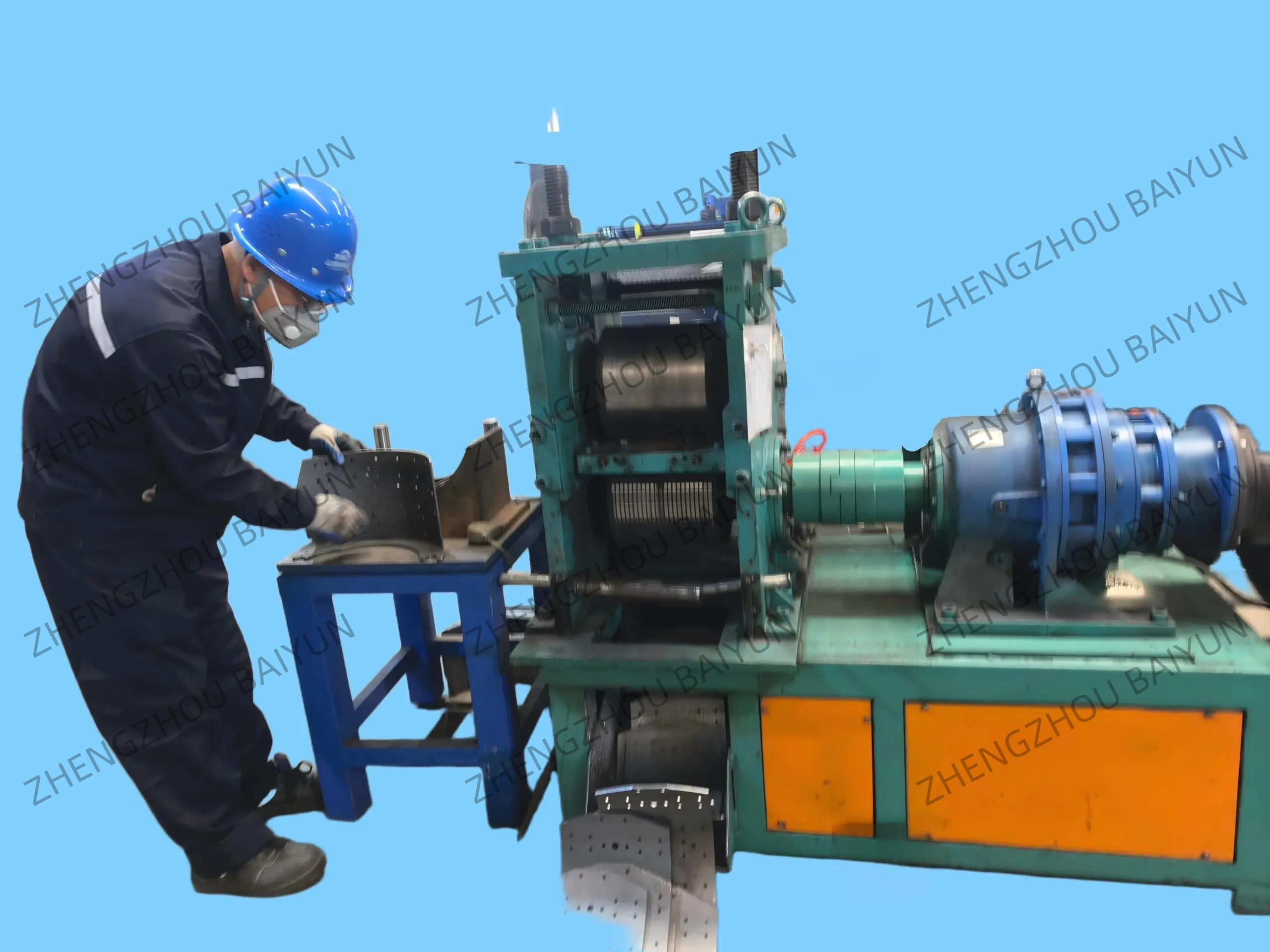

This machine consists of a main frame, support frame, upper roller assembly, lower roller, motor reduction unit, feeding mechanism, discharging mechanism, and electrical control system. The brake shoe face plate is fed in via the feeding mechanism, passes through the upper and lower rollers, and exits through the discharging mechanism to be rolled into the required arc shape. The radius of the brake shoe is adjusted and controlled by the discharging mechanism.
Technical Specifications
| Item | Parameters |
| Driven Roller Diameter | 140mm × 260mm |
| Driving Roller Diameter | 204mm × 280mm |
| Motor Power | 5.5kW / 1440 rpm |
| Reducer | WPWE 135-200, Gear Ratio 1:250 |
| Shift Output | Approximately 2,400 pieces / 8 hours |
| Overall Dimensions | 1300mm × 1100mm × 1400mm |
