Purpose

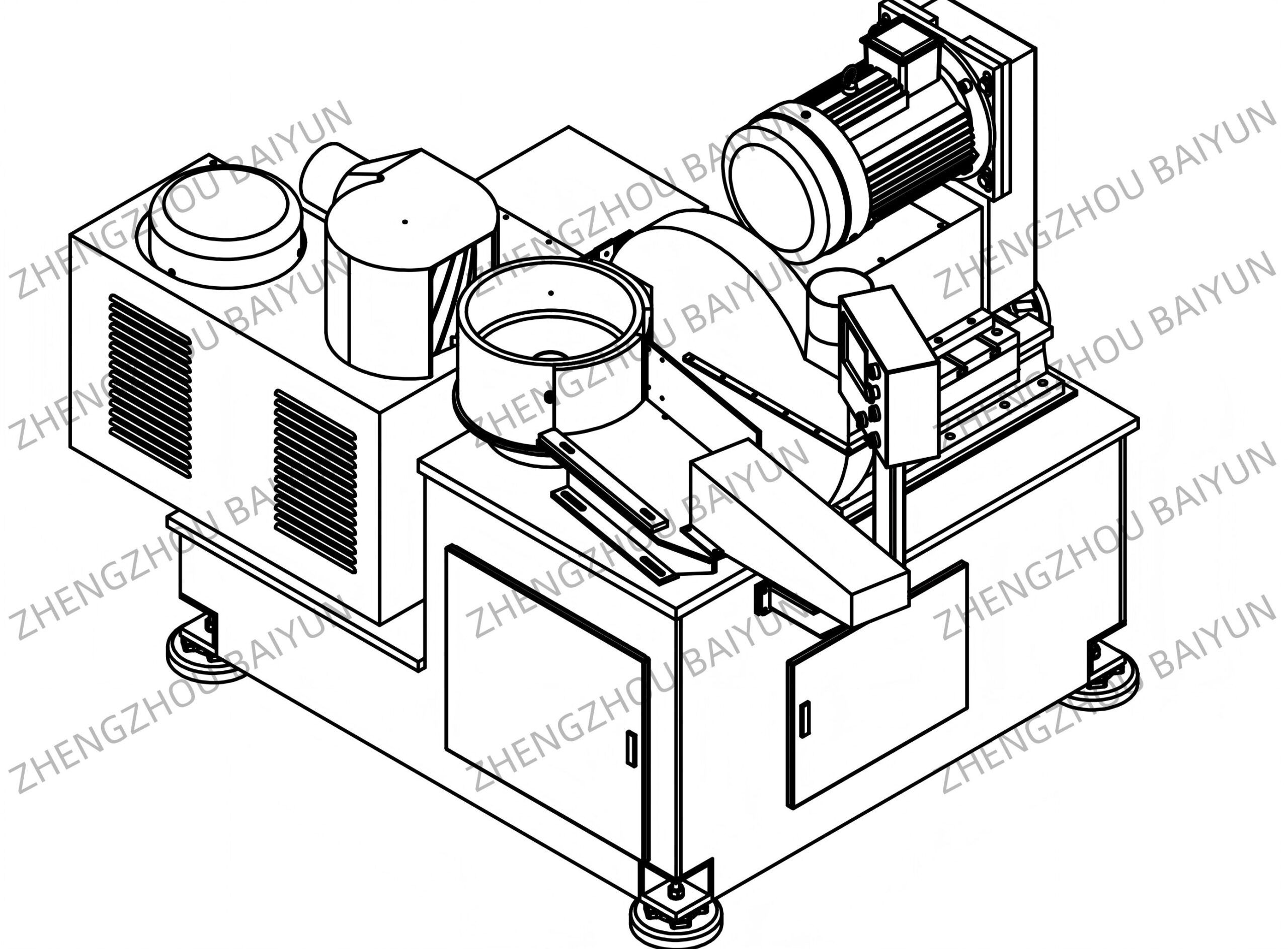

This machine combines rough grinding (using a horizontal grinding head) with precision grinding (using a vertical grinding head), specifically designed for grinding the external circular arcs of drum brake pads. By using different tooling for various brake pad types, it effectively addresses the previous issue of inadequate surface straightness in brake pads and has received high praise from users.
Technical Specifications
| Item | Parameter |
| Horizontal grinding head motor | 11 kW/1460 rpm |
| Vertical grinding head motor | 7.5 kW/1440 rpm |
| Workpiece shaft speed | Variable frequency drive (VFD), 0.75 kW Cycloidal pinwheel reducer |
| Tread width processing | ≤220 mm |
| Tread outer radius processing | R = 150–250 mm |
| Hourly output (pieces) | 60 × workpiece rotations/min |
