Purpose

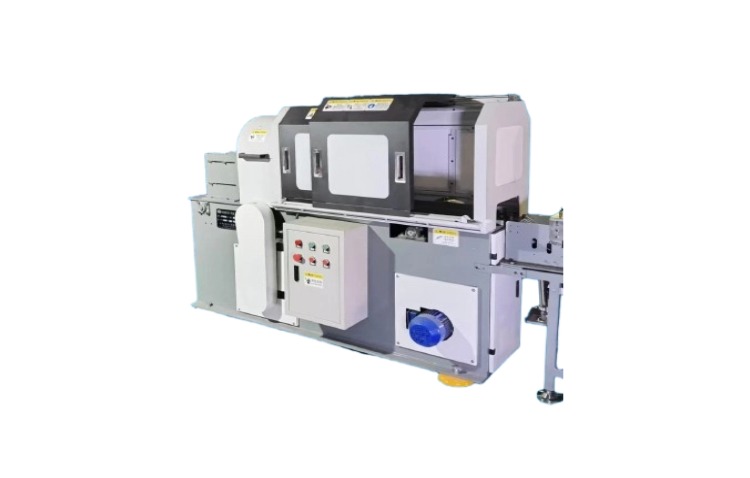

This machine is specially applied to brushing process of drum brake shoes for Fuhua 16-ton TA and TB linings of heavy-duty vehicles.
Processing Description
Brake shoes in the storage hopper are conveyed forward by a special chain. They pass through the rotating upper and lower special inner and outer arc steel wire wheels for ash removal in sequence. The double-sided brushing on the inner and outer arc surfaces of brake shoes can be completed in one pass, and then the workpieces are conveyed out of the brushing area by the chain.
Equipment Advantages
- High efficiency.
- Low operating cost.
- Wide application range.
Technical Parameters
| Item | Details |
| Brush dusting motor power | 6 – pole, 0.75 kW (2 units) |
| Dust collection ports | 3, each ∮100 mm |
| Feeding speed | 1.8–2 m/min |
| Production efficiency | approximately 3,000–4,000 pieces per shift |
| Drive motor | 0.75 kW, equipped with cycloidal pinwheel and reducer; Single unit |
| Air pressure | 6 Pa |
| Pneumatic soot blowing | simultaneous internal and external arc operation |
| Automatic sheet feeding | multi – sheet stacking at the feeding inlet |
| Technical documents provided | 1 copy of user manual and 1 copy of certification |
